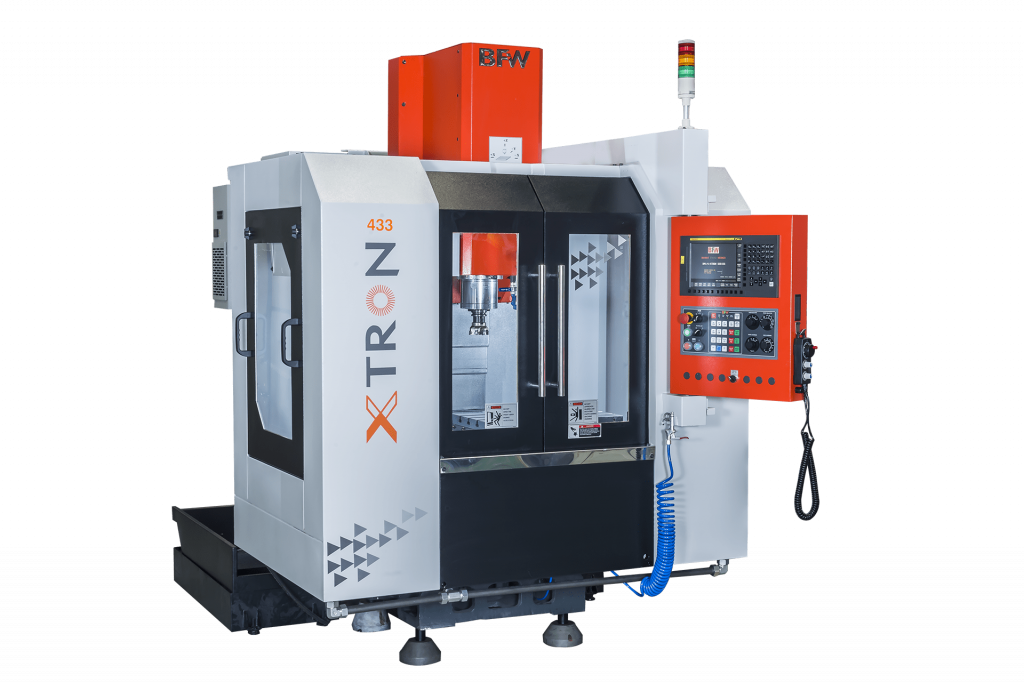

XTRON 433

Home » XTRON 433

XTRON 433

Series

“Xtron 433 has been developed to setup high productivity benchmarks with
superior performnace & ergonomic friendly features”
“High-speed spindle gives you unmatched speed, high feeds and best accuracies
for the most complex applications.”

XTRON 433- Next-gen VMCs, engineered for enhanced machining performance .

- Ac servo drives
- AC variable speed spindle motor
- Hardened and ground ball screws
- Feedback through absolute encoder
- Automatic tool clamping – unclamping
- Centralised automatic lubrication
- Spindle taper air blow
- Telescopic covers with wipers
- Full machine guard
- Manual pulse generator
- RS232 serial / USB interface
- Levelling pads
- Maintenance tool kit
- Electronic counter balance

MACHINE OPTIONS

Coolant gun
Air gun
3 Tier lamp
Ring coolant around spindle
Rigid tapping
AC for electrical cabinet
Air nozzle

Fixed Column Technology
Modualar design
CAE based optimal structural design for thermal stability
Designed to suit adaptability of different kinds of coolant and chip handling systems
High quality spindle on precision bearings eliminates vibration under heavier cuts

Automatic front door
Edge finder
Rear chip disposal
Chip conveyor in lieu of coolant tank with chip tray
2 /3 axis with linear glass scale feedback
16 / 25 / 40 bar coolant through spindle
Provision for 4th axis rotary table
4th axis rotary table
Voltage stabilizer
Ultra isolation transformer
Increased day light area through coloumn raiser block
Spindle mounted probe
Table mounted probe
Hard part probing

Watch XTRON 433 Live In Action!

Specifications

Spindle and Axes.

SPINDLE & AXES	Unit	XTRON 433
Spindle taper		BT-40
Speed	rpm	8000 (6000) (10000)
Power	KW	5.7/7.5
Rapid & Feed
Rapid traverse – X/Y/Z – Std.	m / min	32
Feed rate	mm / min	1 – 10,000

Table

Table	Unit	XTRON 433
Table size	mm	600 x 310
T – Slot (No. / Size / Pitch)	mm	3/14/80
Max. Load on table Std.	Kg	250

Automatic tool changer

Automatic Tool changer	Unit	XTRON 433
Tool change system		Umbrella (Std)	Drum (Opt)
Tool storage capacity – Std. / Opt.	Nos.	12	20
Pull Stud		MAS 403-P40T-I
Max. Tool dia with all pockets full	mm	105	80
Max. Tool dia with adjacent pockets empty	mm	130	125
Max. Tool length	mm	250	200
Max. Tool weight	kgs	7	8
Tool to tool time	sec.	4.7	2.5

Installation Data

INSTALLATION DATA	Unit	XTRON 433
Floor Space (L x B)	mm x mm	1700 x 2010
Machine height (H)	mm	2500
Basic machine weight	kgs	2500
Total connected load (Basic standard machine)	kVA	12

Accuracy as per ISO 230-2

Accuracy as per ISO 230-2	Unit	XTRON 433
Positioning	mm	0.010
Repeatability	mm	0.007

Capacity

Capacity	Unit	XTRON 433
Table longitudinal travel (X – Axis)	mm	400
Table cross travel (Y – Axis)	mm	300
Headstock travel (Z – Axis)	mm	300
Spindle nose face to table top	mm	150 – 450
Increased daylight area with column height block (Optional)	mm	350 – 650
Distance from Floor to table	mm	~850
