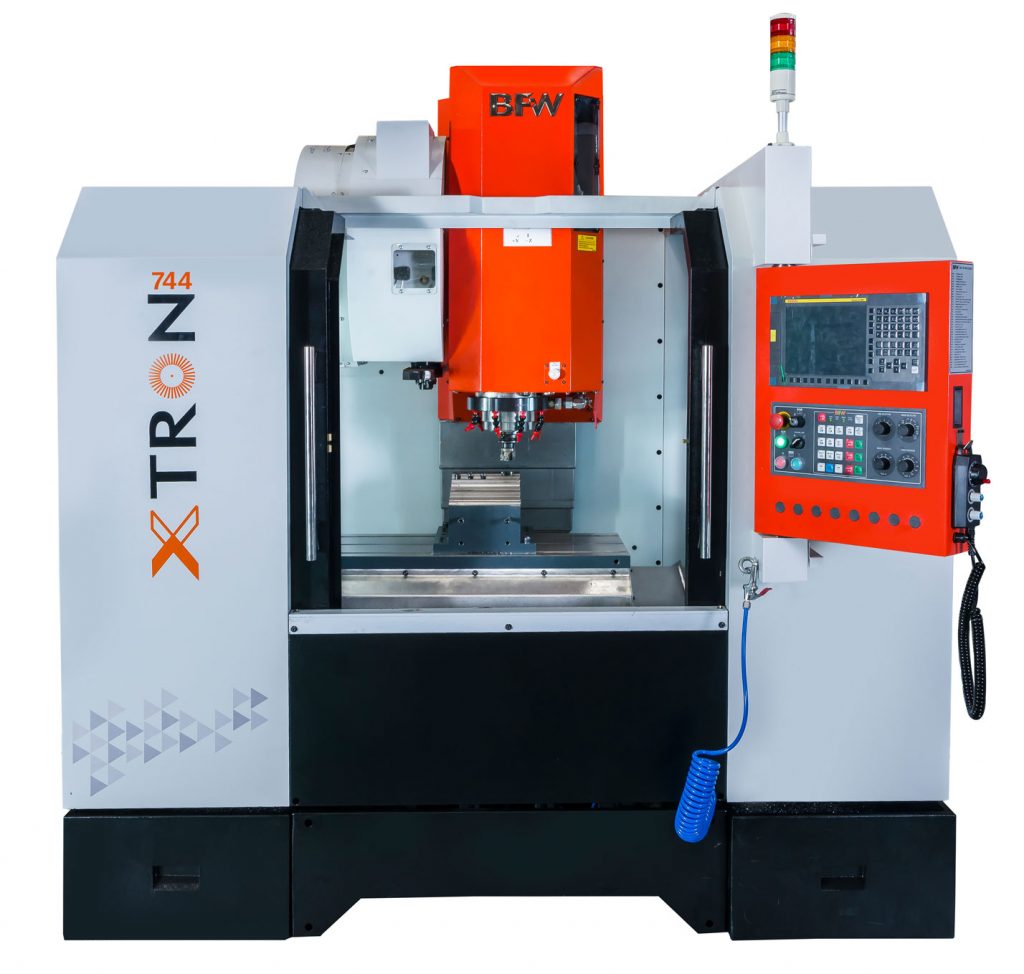

XTRON 544+

Series

“Xtron+ Series have been developed to setup high productivity benchmarks with
superior performnace & ergonomic friendly features”
“High-speed spindle gives you unmatched speed, high feeds and best accuracies
for the most complex applications.”

XTRON+ Series – Next-gen VMCs, engineered for enhanced machining performance.

- Ac servo drives
- AC variable speed spindle motor
- Hardened and ground ball screws
- Feedback through absolute encoder
- Automatic tool clamping – unclamping
- Centralised automatic lubrication
- Spindle taper air blow
- Telescopic covers with wipers
- Full machine guard
- Manual pulse generator
- RS232 serial / USB interface
- Levelling pads
- Maintenance tool kit
- Electronic counter balance

MACHINE OPTIONS

Coolant gun
Air gun
3 Tier lamp
Ring coolant around spindle
Rigid tapping
AC for electrical cabinet
Air nozzle

Fixed Column Technology
Modualar design
CAE based optimal structural design for thermal stability
Designed to suit adaptability of different kinds of coolant and chip handling systems
High quality spindle on precision bearings eliminates vibration under heavier cuts

Automatic front door
Edge finder
Rear chip disposal
Chip conveyor in lieu of coolant tank with chip tray
2 /3 axis with linear glass scale feedback
16 / 25 / 40 bar coolant through spindle
Provision for 4th axis rotary table
4th axis rotary table
Voltage stabilizer
Ultra isolation transformer
Increased day light area through coloumn raiser block
Spindle mounted probe
Table mounted probe
Hard part probing

Watch XTRON 544+ Live In Action!

Specifications

Capacity

Capacity	Unit	XTRON 544+
Table longitudinal travel (X – Axis)	mm	500
Table cross travel (Y – Axis)	mm	400
Headstock travel (Z – Axis)	mm	400
Spindle nose face to table top	mm	150 – 550
Increased daylight area with column height block (Optional)	mm	350 – 750
Distance from Floor to table	mm	975
Spindle center – column front distance	mm	480

Table

Table	Unit	XTRON 544+
Table size	mm	700 x 410
T – Slot (No. / Size / Pitch)	mm	3/14/150
Max. Load on table Std.	Kg	300

Spindle and Axes

SPINDLE & AXES	Unit	XTRON 544+
Spindle taper		BT-40
Spindle speed – Std (Belt driven)	rpm	8000
Spindle speed – Opt.1 (Belt driven)	rpm	6000
Spindle speed – Opt.2 (Belt driven)	rpm	10000
Spindle speed – Opt.3 (Inline)	rpm	12000
Spindle power – Std	KW	5.5/7.5

Rapid & Feed
Rapid traverse – X/Y/Z – Std.	m / min	48
Feed rate	mm / min	1 – 10,000

Automatic Tool Changer

Automatic Tool changer	Unit	XTRON 544+
Tool change system		Twin Arm
Tool storage capacity – Std. / Opt.	Nos.	24
Pull Stud		MAS 403-P40T-I
Max. Tool dia with all pockets full	mm	75
Max. Tool dia with adjacent pockets empty	mm	140
Max. Tool length	mm	250
Max. Tool weight	kgs	8
Tool to tool time	sec.	2.5

Accuracy as per ISO 230-2

Accuracy as per ISO 230-2	Unit	XTRON 544+
Positioning	mm	0.01
Repeatability	mm	0.007

Installation Data

INSTALLATION DATA	Unit	XTRON 544+
Floor Space (L x B)	mm x mm	2250 x 2420
Machine height (H)	mm	2600
Basic machine weight	kgs	4000
Total connected load (Basic standard machine)	kVA	18
