Mach Series

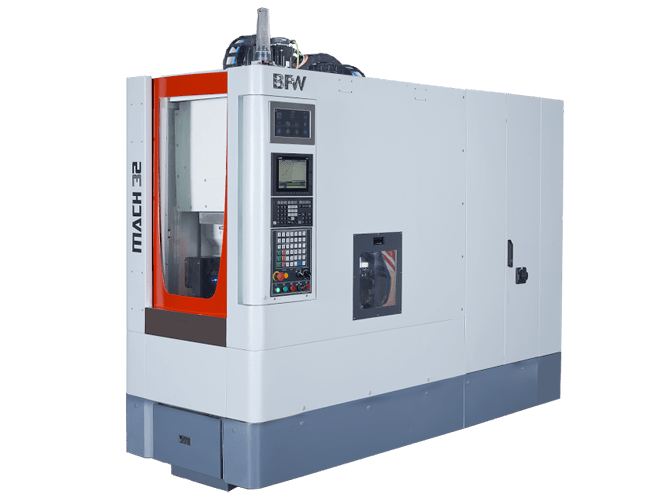

Mach 32, Mach 54

“MACH is a Futuristic, high productive, compact VMC for efficient machining of high volume small parts.
A sturdy machine, designed for optimum rigidity.
MACH is an Agile and precision machining center Rapid rates of 60 m/ min & acceleration upto 2G for Z axes
MACH is a Flexible, can be a stand-alone machine as well as fit perfectly into machining lines; Manual loading as well as Robot automation is possible;
Fixed table as well as option of rotary & tilting rotary tables are also available.”

Ultra high speed VMC MACH delivers you beyond the range of your imagination. Ultimate machining Solutions for Electronic components.

Electronic counter balance for Z axis
AC unit for electrical cabinet
Bellow covers for access protection
Automatic centralized lubrication system
AC servo drives for all axes
Basic coolant system with bed was and flood coolant
Coolant gun
Air gun
Manual pulse generator
Three tier lamp
Work Light
12000 rpm spindle(Mach 32)/8000 rpm spindle(Mach 54)
8 tools magazine(Mach 32)
22 tools magazine(Mach 54)

Compact Foot Print
Best-In-Class Surface Finish
Seamlessly Blended Contours
Ultimate Precision
TPM friendly

24000rpm spindle
Chiller for spindle
Automatic front door
Flexible to accommodate various table configurations- Fixed table/rotary table/ Rotary production system/Tilting Rotary table
20 tools magazine(Mach 32) 26 tool magazine(Mach 54)
Rotary auto pallet changer
Interface for robot automation
Online hydraulics with APC.
Collision detection sensor
iToolCaptain, BFW’s High Precision Tool Monitoring System

Watch Mach Series Live In Action!

Specifications

Spindle

Spindle	Unit	Mach 32	Mach 54
Spindle taper	type	BT 30 (BBT 30/ HSK A50)	BT 30 (BBT30/ HSKA50)
Spindle speed	rpm	12000	8000 (12000)

Table

Table	Unit	Mach 32	Mach 54
Size	mm	520 x 330	600 x 400 (900 x 400)
Table type – T-slot (No. x size x pitch)	mm	3 x 14 x 125	3 x 14 x 125

Pallet size (Pallet – Optional)		500 x 280 (M12 holes)	500 x 280 (M12 holes)

Automatic tool changer

Automatic tool changer	Unit	Mach 32	Mach 54
Tool change system	type	Direct pick-up	Direct pick-up
Tool storage capacity – Std (Opt)	No	8 (20)	22 (26)
Max tool dia (all pockets full/ adj. pockets empty	mm	70	80/ 140

Installation Data

Installation Data	Unit	Mach 32	Mach 54
Floor space (with APC) Wx D	mm x mm	995 x 3200 (1200 x 3750)	1280 x 3650 (1455 x 4120)
Machine weight (H)	mm	2500	2940
Basic machine weight (with APC)	kg	3500 (4000)	4700 (5050)
Compressed air	bar	6	6
Power supply		3 phase 415 V, 50 HZ	3 phase 415 V, 50 HZ
