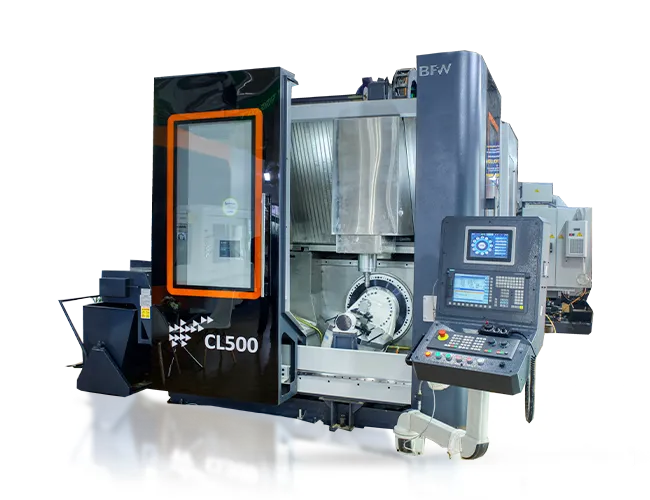

CL 500

CL400 | CL500 | CL600

STATE OF ART VERTICAL MACHINING CENTERS-5 AXIS(OR 4+1).

Standard Features
Unique Features
Optional Features

Roller type guide-ways for all linear axes
Precise ball-screws for all linear axes
Electronic counter-balance for the vertical axis
Automatic centralised lubrication system
AC servo drives for all axes
Air blast for spindle taper cleaning
Basic coolant system with bed wash & flood
Coolant with scraper type chip conveyor
AC unit for electrical cabinet
Tool magazine – 30 tools (Disk type)
Absolute linear scales for all axes
15” color LCD display
Backlash & pitch error compensation
Rigid tapping & retract Function
Simultaneous 4 axes Linear, circular & helical
Interpolation
Tool life management
Machine alarm diagnostics
Energy saving function
3-tier signal tower lamp
Machine lamp
Coolant gun & Pneumatic Gun
Spindle chiller
Siemens 828 D SL controller
Door safety interlock
Total machine guard

840D SL 5-axis CNC Control System
Coolant through spindle at 20 bar, 16 LPM with hydrocyclone FILTER
Isolation transformer
Coolant chiller
Mist collector
Machine color as per customer
Siemens CAD-CAM package
Standard tool holders
Universal tool pre-setter
Laser system for measuring tool offset & tool breakage
CAD model post processor

Watch CL 500 Live In Action!

Specifications

Description	Unit	CL 400	CL 500	CL 600
Table
Table size	mm	ø 450	ø 600	ø 680
Job size (max.) Dia x ht	mm x mm	ø 400 x 400	ø 600 x 500	ø 650 x 500
Maximum safe load on table	kg	200	350	500
Distance from table top to spindle face	mm	200-600	100-600	100-600
Distance table top to floor	mm	800	800	800
Traverse
X/Y/Z axes	mm	500/ 400/ 400	700/ 520/ 500	800/ 600/ 500
A axis	degree	-110°+110°	-110°+110°	-110°+110°
C axis	degree	360°	360°	360°
Axis drive
Feed rates X/ Y/ Z	m/ min	20	20	20
Rapidate X/ Y/ Z	m/ min	50	40	40
B axis	rpm	25	25	25
C axis	rpm	100	25	25
Acceleration	m/s²	5	5	5
Rotary table	deg	360 continuos	360 continuos	360 continuos
Spindle
Type	type	In-line Spindle	In-line Spindle	In-line Spindle
Power continuous (S1/S6-40%)_Siemens	kW	5.5/7.5 (Fanuc/Mitsubhishi)	11/16.5 (Siemens)	11 /16.5
Maximum torque (S1 /S6-40%)	NM	35/48	70/105	70/105
Speed(Option)	RPM	12000	10000 (12000)	10000 (12000)
Optional motors make		Siemens	Fanuc/Mitsubhishi	Fanuc/Mitsubhishi
Tool interface(Option)		HSK A50/BT30	HSK A 63(BT40)	HSK A 63/BT40
Automatic Tool Changer
No of Tools - Std(Option)	No	20	30 (40 & 60)	30 (40 & 60)
Maximum tool dia with all pockets full	No	80	75	75
Maximum tool dia with adjacent pockets empty	mm	140	125	125
Maximum tool length	mm	250	250	250
Tool weight	kg	3	8	8
Tool change time tool to tool	sec	2.5	3.2	3.2
Automatic Tool Changer
Linear axes
Positioning A	mm	0.008	0.008	0.008
Repeatability R	mm	0.005	0.005	0.005
B axis - Tilting table
Positioning A	arc sec	10	10	10
Repeatability R	arc sec	4	4	4
C axis - Rotary Table
Positioning A	arc sec	8	8	8
Repeatability R	arc sec	4	4	4
CNC System		Siemens 828D SL / Mitsubhishi M80/Fanuc 0i MF	Siemens 828DSL (std)/ MitsubhishiM80/Fanuc 0i MF	Siemens 828DSL/ Mitsubhishi M80/Fanuc 0i MF
Installation Data
Basic weight of machine	kg	~ 6000	~ 9000	~ 11000
Machine Width X Depth x Height	mm	~ 1600 x 3500 x 3100 – Without chip conveyor	~ 3700 x 3900 x 3100	~ 4000 x 4200 x 3100
Total connected load	kVA	~35	~ 50	~ 55
Compressed air	bar	5	5	5
Coolant Tank	L	400	400	400
Power supply		415 V ± 10 % AC, 50 ± 2 % Hz, 3 phase	415 V ± 10 % AC, 50 ± 2 % Hz, 3 phase	415 V ± 10 % AC, 50 ± 2 % Hz, 3 phase
Figures within brackets are optional features
