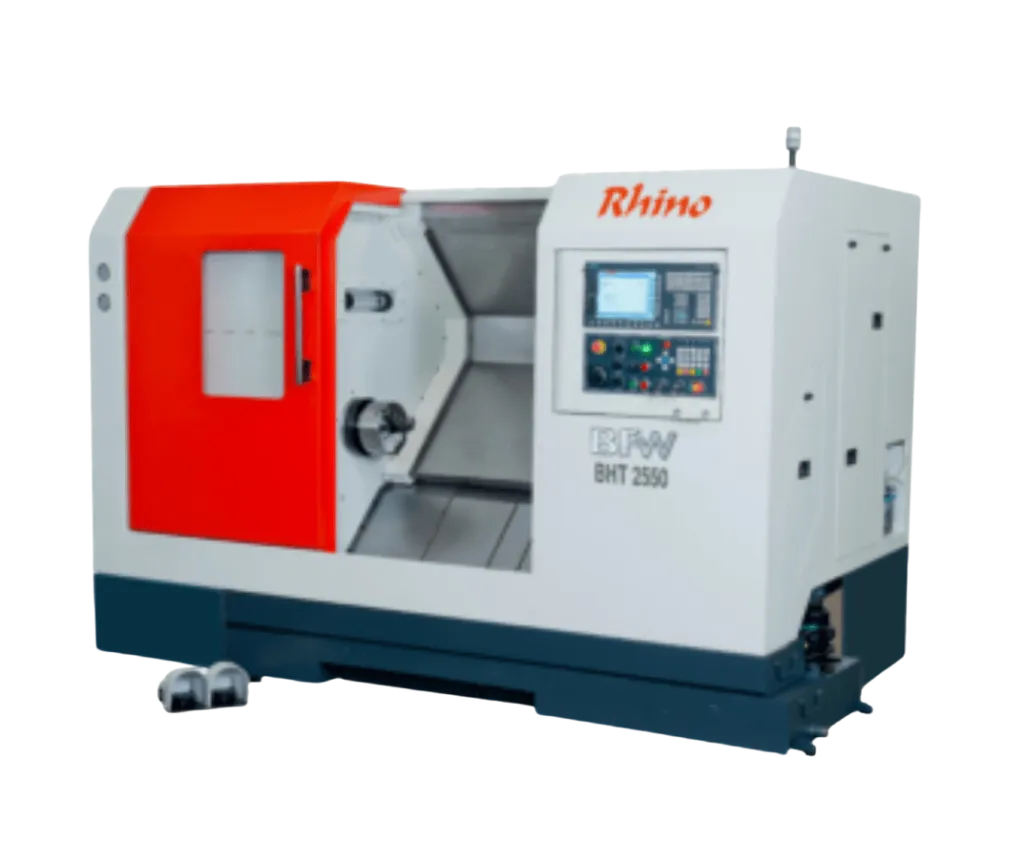

Rhino

Series: 2050 | 2070 | 2550 | 2570 | 3050 | 3070 | 3120

Rhino series machines are made with single-piece inclined bed cum saddle, built with heavy-duty LM guideways for rigidity and precise ball screws for higher accuracy.

BFW HTL Rhino platform developed for heavy-duty applications & superior cutting performance. Machines have been built with optimized structural rigidity and stiffness for ultimate performance. Ensures consistent accuracies on heavier cuts.

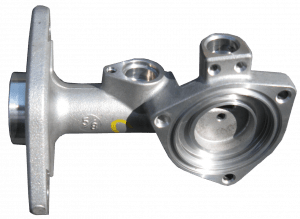

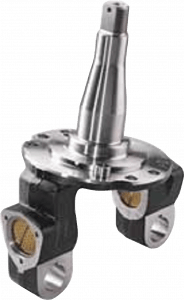

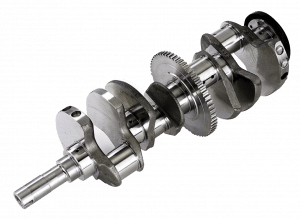

Suitable for medium to large-size components. The right turning platform for Auto components of Commercial vehicles, Oil & Gas, Valves, Defense, Railways, and General Engineering.

LM guide ways for all axis- Class H
High precision ball screws – Class C3
Belt-driven spindle
AC servo motor for spindle & axis
Linear & Circular interpolation
Laser calibration & ball bar tested
Rigid taping
8 – station hydraulic turret
Tool display
3-jaw self centering chuck
Solid rotary cylinder
Tail-stock with programable quill
Coolant tank with chip tray
Machine lamp
Operations indication lamp- 3 color
AC unit for electrical cabinet
Centralized lubrication system
Maintenance tool kit

Monoblock construction of bed cum saddle with an inclined angle of 45 deg
A2-6, A2-8 & A2-11 spindle with 3/2 bearing arrangement for front and rear
Highest bar capacity 65 | 75 | 90
HTP 100/125 – Hydraulic turret
Swivel operator panel for operator easiness
Lesser loading height from the floor and lesser distance from the door for clamping heavy components
Basic TPM features

2 & 4 jaw self-centering chuck
Collet chuck
Hollow cylinder
Pneumatic operated Auto door
Chip conveyor with chip bin
Door safety limit switch
Rigid tap retraction push button
Bar feeder system
Part catcher
Steady rest
Tool probe
Work probe
Automation solutions
Tooled-up solutions

WATCH RHINO LIVE IN ACTION!

Specifications

Technical Specifications – BHT 2050 / 2070 / 2550 / 2570

Specifications	Unit	RHINO 2050	RHINO 2070	RHINO 2550	RHINO 2570
Capacity:
Swing over bed	mm	550	550	550	550
Swing over carriage	mm	330	330	330	330
Admit between center distance	mm	625	825	625	825
Standard turning diameter (full length)	mm	330	330	330	330
Maximum turning Diameter (Disc-100mm length)	mm	360	360	360	360
Interference-free turning dia(Tool collision dia with adjacent tool pocket)	mm	258	258	258	258
Max turning length between Tail-stock & Head-stock centre	mm	600	800	590	790
Max turning length from chuck hard jaw face to tailstock centre	mm	490	690	500	700
Work holding & tool holding:
Standard chuck size	mm	250	250	250	250
Bar capacity	mm	65	65	74	74
Turret indexing mechanism	type	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Turret Center height	mm	100	100	100	100
Turning Tool Shank size (B x W)	mm	25 * 25	25 * 25	25 * 25	25 * 25
No of tools	Nos	8	8	8	8
Boring tool holder Size (Dia)	mm	40	40	40	40
Spindle:
Spindle nose	type	A2-6	A2-6	A2-8	A2-8
Spindle bore	mm	77	77	87	87
Number of bearing front/ rear	No’s	3/ 2	3/ 2	3/ 2	3/ 2
Spindle bearing front/ rear	mm	110 / 100	110 / 100	120 / 110	120 / 110
Spindle speed	rpm	3000	3000	3000	3000
Control System
Spindle motor power continues/ intermittent rating	Kw	Fanuc – 11/ 15 \| PB 22 – 11/15) \| Siemens 11/ 15 \| Mitsubishi 11 / 15	Fanuc – 11/ 15 \| PB 22 – 11/15) \| Siemens 11/ 15 \| Mitsubishi 11 / 15	Fanuc – PB 22 – 11/15) \| PB30(15/18.5) Siemens 12/ 18 \|	Fanuc – 11/ 15 \| P 30 – 15/18.5) \| Siemens 12/ 18
Full power range	rpm	Fanuc – 1000 – 1750 \| Siemens 750 – 2400 \| Mitsubishi 1000 – 2000 \|	Fanuc – 1000 – 1750 \| Siemens 750 – 2400 \| Mitsubishi 1000 – 2000 \|	Fanuc – 500 – 1550 \| Siemens 500 – 1500 \|	Fanuc – 500 – 1500 \| Siemens 500 – 1500
Traverse
Cross slide movement (X axis)	mm	200 (+180/ -20)	200 (+180/ -20)	200 (+180/ -20)	200 (+180/ -20)
Longitudinal movement (Z axis)	mm	620	820	620	820
Rapid traverse (X axis)	m/min	20	20	20	20
Rapid traverse (Z axis)	m/min	20	20	20	20
Cutting feed rate	m/min	0 – 10	0 – 10	0 – 10	0 – 10
Tailstock
Quill diameter	mm	80	80	80	80
Quill traverse	mm	100	100	100	100
Base traverse	mm	400	600	400	600
Quill taper	type	MT – 4	MT – 4	MT – 4	MT – 4
Quill thrust force-Max at 15 bar	kgf	300	300	300	300
Fluid system
Coolant tank capacity	ltr	160	180	160	180
Coolant pump capacity	lpm	200	200	200	200
Lubrication tank capacity (servo 68)	ltr	2.7	2.7	2.7	2.7
Hydraulic tank capacity (servo 68)	ltr	40	40	40	40
Hydraulic pump capacity	lmp	20	20	20	20
Hydraulic system pressure	bar	35	35	35	35
Accuracy as per ISO 230 – 2
Positioning X/Z	mm	0.01	0.01	0.01	0.01
Repeatability – X/Z	mm	0.007	0.007	0.007	0.007
Machine installations:
Machine dimension W x D X H	mm	3350 * 1900 * 1900	3700 * 1900 * 1900	3350 * 1900 * 1900	3700 * 1900 * 1900
Total connected load	kVA	25	25	25	25
Machine Weight	kgs	4000	4500	4200	4700

Technical Specifications – BHT 3050 / 3070 / 3120

Technical Specifications – BHT 3050 / 3070 / 3120
Models	Units	BHT 3050	BHT 3070	BHT 3120
Capacity
Swing Over Bed	mm	750	750	750
Swing Over Carriage	mm	480	480	480
Admit Between Centre Distance	mm	660	860	1240
Standard Turning Dia (Full length)*	mm	480	480	480
Maximum Turning Dia – (Disc – 100mm Length)*	mm	600	600	600
Interference Free Turning Dia (Tool collision dia with adjacent tool pocket)*	mm	310	310	310
Max Turning Length between Tailstock & Headstock centre	mm	595	795	1175
Max Turning Length from Chuck hard jaw face to tailstock centre*	mm	520	720	1120
Work & Tool Holding
Standard Chuck Size	mm	304(400)*	304(400)*	304(400)*
Bar capacity	mm	90	90	90
Turret Indexing Mechanisam	Type	Hydraulic	Hydraulic	Hydraulic
Turret centre height	mm	125	125	125
Turning Tool Shank size ( B*W)	mm	32 x 32(25×25)*	32 x 32(25×25)*	32 x 32(25×25)*
No of Tools	No’s	8(12)*	8(12)*	8(12)*
Boring Tool Holder Dia	mm	50(40)*	50(40)*	50(40)*
Spindle
Spindle Nose	Size	A2-11	A2-11	A2-11
Spindle Bore	mm	105	105	105
No of Bearing Front / Rear	No’s	3 / 2	3 / 2	3 / 2
Spindle Bearing Front / Rear	mm	140 / 130	140 / 130	140 / 130
Spindle Speed*	rpm	2400(1500)*	2400(1500)*	2400(1500)*
CNC System
CNC System	Make	Fanuc
Spindle motor power continuous / intermittent rating	Kw	Fanuc – Power up series Pβ30 (15/18.5)	Fanuc – Power up series Pβ30 (15/18.5)	Fanuc – Power up series Pβ30 (15/18.5)
Full power range	rpm		Fanuc – 400 -1200
Traverse
Cross slide movement ( X axis)	mm	325 (+300 / – 25)	325 (+300 / – 25)	325 (+300 / – 25)
Longitudinal movement ( Z axis)	mm	660	860	1240
Rapid traverse ( X axis)	m/min	20	20	20
Rapid traverse ( Z axis)	m/min	20	20	20
Cutting feed rate	m/min	0 – 10	0 – 10	0 – 10
Tailstock (Live centre – Quill)
Quill Diameter	mm	120	120	120
Quill Traverse	mm	140	140	140
Base Traverse	mm	500	700	1100
Quill Taper	Type	MT – 5	MT – 5	MT – 5
Quill thrust force – Max at 15bar	Kgf	500	500	500
Fluid Sysytem
Coolant Tank capacity	ltr	160	180	220
Coolant Pump Capacity	lpm	200	200	200
Lubrication Tank Capacity	ltr	2.7	2.7	2.7
Hydraulic Tank Capacity	ltr	40	40	40
Hydraulic Pump Capacity	lpm	20	20	20
Hydraulic sysytem pressure	bar	35	35	35
Accuracy as per ISO 230 – 2
Positioning X / Z	mm	0.01	0.01	0.01
Repeatabilty – X / Z	mm	0.007	0.007	0.07
Machine Installations
Basic Machine Dimensions ( W x D x H ) (approx)	mm	3500 x 2200 x 2200	3700 x 2200 x 2200	4100 x 2200 x 2200
Total Connected Load	Kva	30	30	30
Basic Machine Weight (approx)	Kgs	~5200	~5500	~6000
