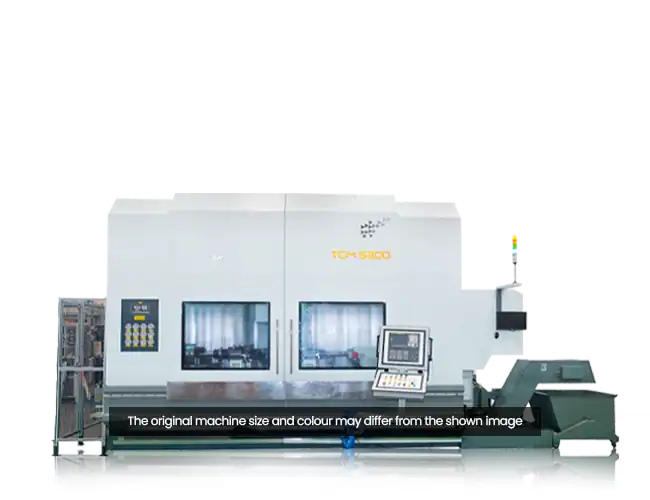

MULTI-PROCESS: TCM Series

TCM 4000 Series | TCM 5000 Series

Heavy frame & innovative design supports heavy cutting to produce better surface finish and provides long term precision for accuracy. Tailor made solutions for machining large sized components for Aerospace & Off –road vehicle parts.

Multi tasking flexible machine.

Heavily ribbed structure, base and column
Wide range of flexibility for long fixed table
Modular structure
Extensive series range
High quality roller guideways
Various spindle speeds available as option

Watch TCM Live In Action!

Specifications

Series 1.

Model	TCM 4100	TCM 4200	TCM 4300	TCM 4400	TCM 4500
Table size	1500 x 635	2500 x 635	3500 x 635	4500 x 635	5500 x 635
X/ Y/ Z Axes	1000 / 600/ 700	2000 / 600/ 700	3000 / 600/ 700	4000 / 600/ 700	5000 / 600/ 700
Swivel Head
Swivel angle	200 (+/- 100 deg)	200 (+/- 100 deg)	200 (+/- 100 deg)	200 (+/- 100 deg)	200 (+/- 100 deg)
Swivel accuracy	+/ – 3/ 5/ 10	+/ – 3/ 5/ 10	+/ – 3/ 5/ 10	+/ – 3/ 5/ 10	+/ – 3/ 5/ 10

Series 2.

Model	TCM 5100	TCM 5200	TCM 5300	TCM 5400	TCM 5500
Table size	1500 x 835	2500 x 835	3500 x 835	4500 x 835	5500 x 835
X/ Y/ Z Axes	1000 / 800/ 700	2000 / 800/ 700	3000 / 800/ 700	4000 / 800/ 700	5000 / 800/ 700
Swivel Head
Swivel angle	200 (+/- 100 deg)	200 (+/- 100 deg)	200 (+/- 100 deg)	200 (+/- 100 deg)	200 (+/- 100 deg)
Swivel accuracy	+/ – 3/ 5/ 10	+/ – 3/ 5/ 10	+/ – 3/ 5/ 10	+/ – 3/ 5/ 10	+/ – 3/ 5/ 10
