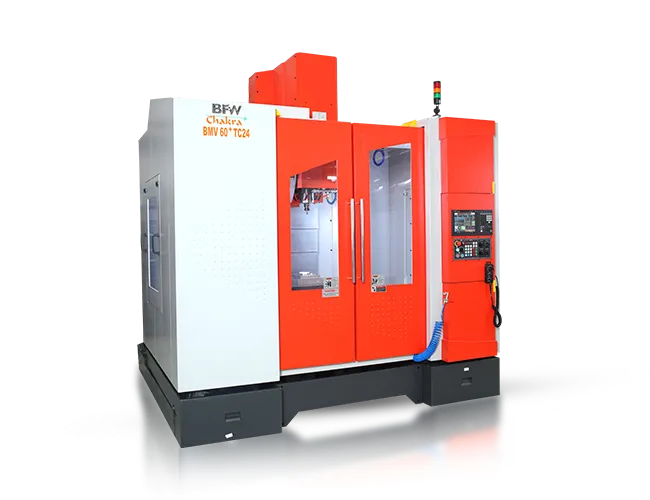

BMV 60+

BMV 60+

BMV60+ | BMV60+ TC24 | BMV60+ TC20

“Vertical machining center BMV 60+ promises unrevealed quality, precision, and productivity. These machines are of C-Frame construction with rigid base, robust spindle, and high precision feed mechanism with our state-of-the-art technologies. Heavy-duty machining combined with superior accuracies is the hallmark of these machines.
BMV 60+ series catering to the requirements of machining small to medium-size applications for batch production with a diverse range of options, we can adapt our machining centers to meet specific application requirements for your competitive manufacturing.”

BMV 60+ is fast, powerful to achieve high speed machining & high accuracies.

  •  AC servo drives
  • AC variable speed spindle motor
  • Hardened and ground ball screws
  • Feedback through the absolute encoder
  • Automatic tool clamping-unclamping
  • Centralized automatic lubrication
  • Spindle taper air blow
  • Telescopic covers with wipers
  • Full machine guard
  • RS 232 serial/ USB interface
  • Leveling pads.
  • Maintenance tool kit
  • Electronic counterbalance
  • Air gun, 3 Tier lamp, Air nozzle
  • Rigid tapping
  • AC for electrical cabinet
  • Front chip disposal
  • Compact footprint.
  • Superior aesthetics
  • High metal removal rate
  • Easy coolant and chip management
  • Powerful spindle with various power & torque options
  • Rear chip disposal
  • Chip conveyor in lieu of coolant tank with chip tray
  • 2/ 3 axis with linear glass scale feedback
  • 16/25/ 40 bar coolant through spindle
  • Provision for 4th and 5th axis rotary table
  • 4th axis rotary table
  • Voltage stabilizer
  • Ultra isolation transformer
  • Increased daylight area through column raiser block
  • Spindle mounted probe
  • Table mounted probe
  • Hard part probing
  • Edge finder
  • Automatic front door
  • Ball screw type auto pallet changer with twin pallets
  • Higher Spindle Power
  • Ring coolant around the spindle
  • Spindle RPM 4800
  • Higher spindle RPM with chiller unit

Watch BMV60+ Live In Action!

Specifications

Capacity

Capacity UNIT BMV60+ BMV60+ TC24 BMV60+ TC20
Table longitudinal travel (X – Axis) mm 1050 1050 1050
Table cross travel (Y – Axis) mm 610 610 610
Headstock travel (Z – Axis) mm 610 610 610
Spindle nose face to table top mm 150 – 760 150 – 760 150 – 760
Increased daylight area with column height block (Optional) mm 400 – 1010 400 – 1010 400 – 1010
Distance from Floor to table mm 1000 1000 1000
Spindle center – column front distance mm 630 630 630

Table

Table UNIT BMV60+ BMV60+ TC24 BMV60+ TC20
Table size mm 1250 x 600 1250 x 600 1250 x 600
T – Slot (No. / Size / Pitch) mm 5/18/100 5/18/100 5/18/100
Max. Load on table Std. Kg 1200 1200 1200

Spindle and Axes

SPINDLE & AXES UNIT BMV60+ BMV60+ TC24 BMV60+ TC20
Spindle taper BT-40 BT-40 BT-50
Spindle speed – Std. rpm 6000 6000 6000
Spindle speed – Opt.1 rpm 8000 8000 NA
Spindle speed – Opt.2 rpm 10000 10000 NA
Spindle power – Std. UNIT BMV60+ BMV60+ TC24 BMV60+ TC20
Fanuc / Mitsubishi, Cont./30 min. rating kW 7.5/11 7.5/11 7.5/11
Spindle power – Opt (High power) UNIT BMV60+ BMV60+ TC24 BMV60+ TC20
Fanuc / Mitsubishi, Cont./30 min. rating kW 11/15 11/15 11/15
Siemens, cont./ S6-40% rating kW 11/16.5 11/16.5 11/16.5
Rapid traverse – X/Y/Z – Std. m / min 32 32 32
Feed rate mm / min 1 – 10,000 1 – 10,000 1 – 10,000
Guide ways Type LM LM LM

Accuracy as per ISO 230-2

Accuracy as per ISO 230-2 UNIT BMV60+ BMV60+ TC24 BMV60+ TC20
Positioning mm 0.016 0.016 0.016
Repeatability mm 0.012 0.012 0.012

Automatic Tool Changer

Automatic Tool changer UNIT BMV60+ BMV60+ TC24 BMV60+ TC20
Tool change system NA Twin Arm Twin Arm
Tool storage capacity – Std. / Opt. Nos. 24 20
Pull Stud MAS 403-P40T-I MAS 403-P40T-I MAS 403-P50T-I
Max. Tool dia with all pockets full mm 75 130
Max. Tool dia with adjacent pockets empty mm 140 220
Max. Tool length mm 250 250
Max. Tool weight kgs 8 15
Tool to tool time sec. 2.5 4.5

Automatic Pallet Changer(optional)

Automatic Pallet changer (Optional) UNIT BMV60+ BMV60+ TC24 BMV60+ TC20
Type of APC NA Ball screw Ball screw
Number of pallets Nos. 2 2
Pallet size mm x mm 1200 x 580 1200 x 580
Maximum safe load per pallet Kgs 600 600

Installation Data

INSTALLATION DATA UNIT BMV60+ BMV60+ TC24 BMV60+ TC20
Floor Space (L x B) mm x mm 2850 x 2800 2850 x 2800 2850 x 2800
Machine height (H) mm 3100 3100 3100
Basic machine weight kgs 7500 8000 8500
Total connected load (Basic standard machine) kVA 25 28 27
Total connected load (Basic standard machine with High Power spindle) kVA 30 33 32
