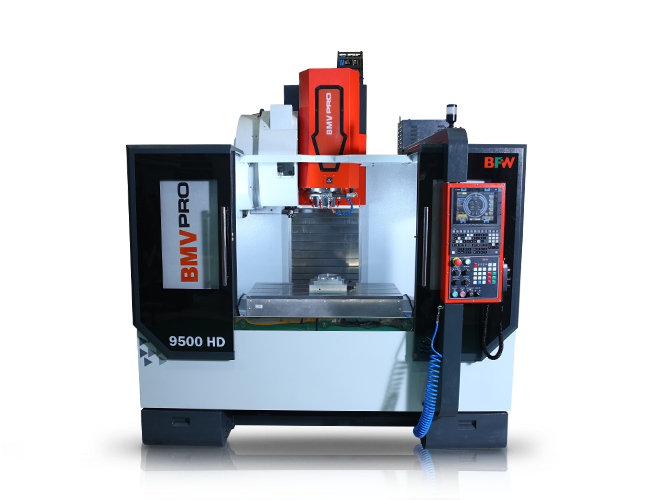

BMV Pro series of Vertical Machining Centers have been designed for various machining requirements to achieve better surface finishing, cycle time, and process capabilities for various applications. Suitable for Aerospace, Automotive, Die & Mould, and General Engineering segments.
Providing utility, flexibility, productivity, and ensuring competitive advantage to manufacturing setup.
It is a result of seamlessly combined 6 decades of BFW manufacturing experience & renovated series from the proven & benchmarking technology developed to match PAR with global standards.
The Innovative, successful BMV Pro series has been introduced to empower our customers to achieve competitive manufacturing.
| Capacity | 9500 HS | 9500 HD | |||
| Table longitudinal travel (X-axis) | mm | 900 | |||
| Table cross travel (Y – axis) | mm | 500 | |||
| Head stock travel (Z – axis) | mm | 500 | |||
| Spindle nose face to table top | mm | 100-600 | |||
| Distance from(Spindle Center to Column front) | mm | 525 | |||
| Distance from floor to table | mm | 950 | |||
| Table: | |||||
| Table size | mm | 510*1100 | |||
| T – slot (No./ size/ pitch) mm | mm | 3/18/0165 | |||
| Maximum load on table standard | kg | 500 | 900 | ||
| Axes | |||||
| Rapid traverse X/Y/ Z Axis | m/min | 48/48/48 | 40/40/40 | ||
| Accelerations-X/Y/ Z Axis | m/min | 1G/1G/1G | 0.8G/0.8G/0.8G | ||
| Feed rate | mm/min | 1-20000 | 1-10000 | ||
| Spindle Drive: STD | Incline Drive | Belt Drive | |||
| Spindle Taper | Type | HSK-A-63 | BBT-40 | BT-40 | BBT-40 |
| Power: Mitsubishi: S3/ S2 (30 min)/ Continuos | kW | 15/11/7.5 | 15/11/7.5 | ||
| Max speed: Std (option) | rpm | 10,000(12,000) | 8000(6000) | ||
| Automatic Tool Changer: Twin Arm | |||||
| Tool change arm length | mm | 22.5 | 265 | ||
| Tool change time (Tool to Tool) | Sec | 2.2 | 2.42 | ||
| Tool change time (Chip to Chip) | Sec | 3.5 | 4.5 | ||
| Tool change system | Nos | 24 | 24 | ||
| Pull stud-MAS 403 | Type | – | P40 T-1 | P40 T-1 | P40 T-1 |
| Maximum tool with all pocket full | mm | 75 | |||
| Max tool dia adjacent pockets empty | mm | 125 | 140 | ||
| Max tool length | mm | 250 | |||
| Max tool weight | kgs | 7 | |||
| Accuracy as per ISO-230-2 | |||||
| Positioning Accuracy | mm | 0.01 | |||
| Repeatability Accuracy | mm | 0.008 | |||
| Installation Data | |||||
| Floor Space (W X D) | mm*mm | 2400*2200 | |||
| Machine height (H) (Z-Full stroke upwards) | mm | 2600 | |||
| Basic machine weight (Apprx.) | kgs | 5000 | |||
| Total Connected load (Basic Machine) | KVA | 26 | 22 | ||
CNC Prospects
| CNC FUNCTIONS | |||
| Features | Mitsubishi M8OV | ||
| Display | 10 4″ color | C | ||
| Maximum feed ayes | 5 | ||
| Number of simultaneously controllable axis | 4 | ||
| Minimum input increment | 0.0001 mm, 0.0001 deg | ||
| Spindle speed function | 5-digit S code | ||
| Spindle speed override | 50-120% (in steps of 10%) | ||
| Feed override | 0-200 % | ||
| Feed rate command | 4-digit F code | ||
| inch- mm conversion | S | ||
| Part program storage length | 2MB | ||
| Number of part programs | |||
| Number of sub program call levells | 10 | ||
| Single block , Exact stop, Dry run | S | ||
| DNC operations | RS232C/SD | ||
| Run hour and part count | S | ||
| Help function, Graphic display | S | ||
| Embedded ethernet. Front USB interface | S | ||
| Fast ethernet/ data server | S | ||
| Machining condition selection system | S | ||
| High speed skip or probe runction | S | ||
| Dynamic graphic display, Direct robot control | S | ||
| Built In WLAN & Screen Monitoring. QR code machining | S | ||
| Multi touch gesture. Cutting Load Control | S | ||
| Image input interference, 3D machining solution | S | ||
| Parameter adiust Screen for High Accuracy Control | S | ||
| CNC FEATURES | |||
| Linear, Circular & Helical interpolation | S | ||
| Absolute/ incremental programming | S | ||
| Tool radius compensation | S | ||
| Canned cycles for drilling and milling | S | ||
| Work piece co-ordinate svstem | 54 pairs | ||
| Background editing, Backlash compensation | S | ||
| Pitch error, Bi-directional pitch error compensation | S | ||
| Polar co-ordinate, Scaling, mirroring | S | ||
| History of operator alarms and messages | S | ||
| Look-ahead function | 2020 STD | ||
| Custom macro B/ parameter programming | S | ||
| Simple tool life management, Multi language display | S | ||
| Program restart/ block search in CE card | S (in SD/USB) | ||
| Program edit in CF Card | S (in SD/USB) | ||
| Nano Interpolation. Manual pulse generator | S | ||
| Automatic data backup. Cutter compensation | S | ||
| Cylindrical interpolation, Spline interpolation – 2 | S | ||
| Tool Cutting point Control for 5 axis machining | S | ||
| Machining program management, OMR- CC | S | ||
| 4th axis / 4th 5th axis | O | ||
