CNC Vertical Milling

Ready-made VMC machine and VMC machine full form solutions offer a comprehensive range of options for businesses seeking a cost-efficient approach to enhancing manufacturing capabilities without the need for custom manufacturing.

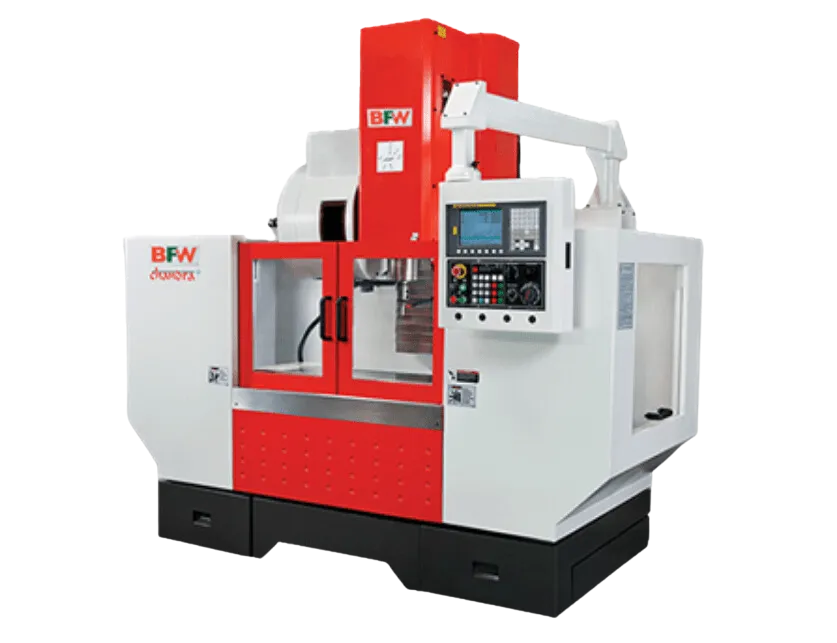

Chandra+

Chandra+ features an electric counterbalance, integrated automatic tool magazine, etc.

Product details

Join our Global network with over 65 000 machine installations

Contact us and let’s explore potential partnerships and cooperations, either online or join us at one of our events. Our custom solutions are manufactured with the use of cutting-edge technologies and the latest methodologies.

CNC vertical milling has revolutionized the way manufacturers approach precision machining, offering capabilities that were once unimaginable. Whether you’re involved in aerospace, automotive, or custom fabrication, the possibilities with this technology are vast and continuously evolving. But what exactly sets CNC vertical milling apart, and why is it becoming the go-to solution for industries requiring top-tier performance? In this article, we’ll dive into the core benefits and explore the wide-ranging applications that make this technology an industry favorite.

What is CNC vertical milling machine?

CNC vertical milling is a type of machining process where a computer-controlled cutting tool moves along three axes (X, Y, and Z) to remove material from a workpiece. The spindle, which holds the cutting tool, is oriented vertically, allowing the tool to move up and down while shaping or cutting the material. This method is commonly used for high-precision operations like drilling, slotting, and contouring across various materials, making it a versatile technique in industries such as automotive, aerospace, and manufacturing.

Benefits of CNC vertical milling

High Precision and Accuracy: CNC vertical milling machines use computer-guided controls to achieve an exceptional level of precision in machining. This means they can produce parts with intricate designs, sharp edges, and complex geometries, all while maintaining tight tolerances. This level of precision is crucial in industries such as aerospace and medical device manufacturing, where accuracy is non-negotiable.
Versatility: These machines can handle a broad range of materials, from soft plastics to hardened metals like steel and titanium. This versatility makes CNC vertical milling useful across various industries, including automotive, electronics, and even custom fabrication. The ability to switch between different materials with minimal machine adjustment further enhances its appeal.
Efficiency: Since the entire process is automated, CNC vertical milling greatly reduces the time and effort required for manual operation. Once programmed, the machine can operate continuously with minimal oversight, allowing for faster production cycles. This efficiency is particularly valuable in large-scale manufacturing where time and cost savings are critical.
Flexibility: CNC vertical milling machines are highly adaptable to different tasks and workpieces. Operators can easily reprogram the machine for different jobs without needing significant manual reconfiguration. This flexibility makes it ideal for both prototyping and full-scale production runs, allowing manufacturers to quickly respond to changes in design or customer requirements.
Consistency and Repeatability: One of the key advantages of CNC technology is the ability to replicate the same part over and over with no loss in quality. This consistency is crucial in industries like automotive, where uniformity across thousands of parts is necessary to ensure performance and reliability. With CNC vertical milling, once the machine is set up, every part produced will meet the exact same specifications.
Ideal for Face Milling and Drilling: The vertical orientation of the spindle in CNC vertical milling is particularly well-suited for tasks like face milling, where large, flat surfaces need to be machined. It’s also excellent for drilling, as the vertical movement of the tool provides a direct and efficient way to create precise holes. This makes it a preferred method for creating both simple and complex parts with features like slots, holes, and contoured surfaces.

Applications of vertical CNC milling machinery

The applications of CNC vertical machining center span across multiple industries due to its precision, versatility, and ability to handle various materials. Here are key areas where it is commonly used:

Aerospace: CNC vertical milling is employed to produce high quality parts for aircraft components, including turbine blades, engine parts, and structural elements. The ability to work with lightweight but durable materials like titanium and aluminum is essential in this industry.
Automotive: In the automotive industry, CNC vertical milling is used to create engine blocks, transmission housings, gearboxes, and other critical components. The process ensures uniformity and high tolerance levels needed for mass production in vehicles.
Medical Device Manufacturing: This method is crucial for producing medical devices and implants, such as orthopedic components, surgical instruments, and prosthetics. The precision offered by CNC milling allows for the creation of complex, custom-fit parts that meet strict regulatory standards.
Electronics: CNC vertical milling machines are used to manufacture precision parts for electronics, including housings for microchips, circuit boards, and heat sinks. Their accuracy is essential for ensuring the proper fit and functionality of electronic components.
Tool and Die Making: CNC vertical milling is used to create molds, dies, and tooling components for various industries. These molds and dies are used to shape plastic, metal, and other materials in manufacturing processes, such as injection molding and stamping.
Custom Fabrication and Prototyping: The flexibility of CNC vertical milling makes it ideal for custom fabrication, where unique parts are designed and produced based on specific needs. It’s also widely used in prototyping to create one-off pieces before full-scale production begins.
Military and Defense: CNC vertical milling is often used to produce precision parts for weapons, ammunition, and military equipment. The process allows for the creation of high-strength components needed for defense applications, where reliability and durability are critical.
Energy Sector: The oil, gas, and renewable energy industries use CNC vertical milling to produce parts such as turbines, valves, and components for drilling equipment. These parts require high tolerance and durability to withstand extreme conditions.
Architecture and Construction: In construction, a CNC machine is used to create custom architectural components, including decorative metalwork, structural parts, and detailed facade elements, ensuring both functionality and aesthetic appeal.

Conclusion

Vertical CNC milling machines offer numerous advantages, including precision, efficiency, and versatility, making them indispensable in today’s advanced manufacturing landscape. From aerospace components to medical devices, these machines play a vital role in producing high-quality parts that meet stringent industry standards. With their adaptability to various materials and tasks, CNC vertical milling continues to be a valuable asset for industries seeking consistency, cost-effectiveness, and innovation in their production processes.
