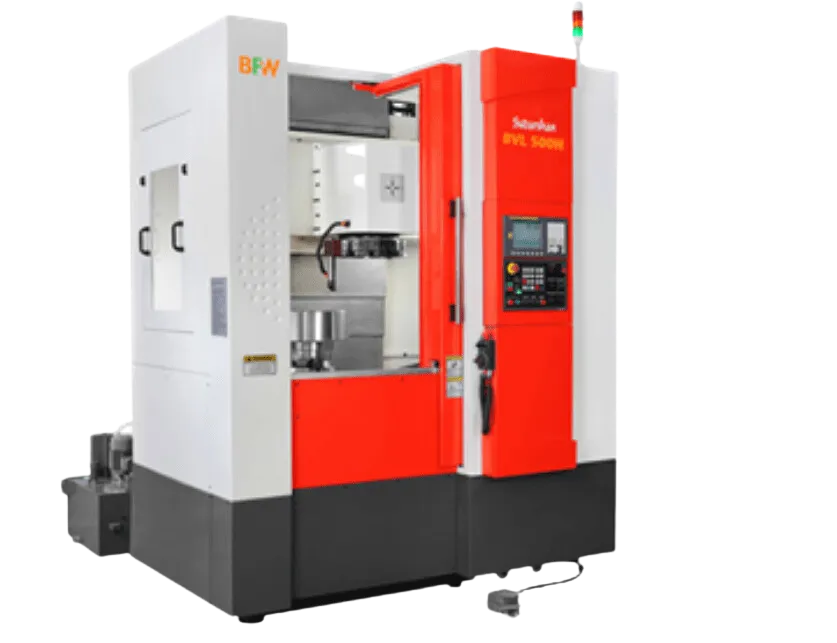

BVL 550H

BVL 500 H | BVL 550 H | BVL 700 H | BVL 800 H | BVL 900 H | BVL 1250 H

To meet the requirement of heavy engineering industries such as Oil & Gas, Earth Moving, and Automobile, VTL H series machines delivers its best graded cast iron bed and column assures thermal stability and better machine life accuracy along with great rigidity, stability, and performance. Box type construction, heavy-duty spindle, high speed bi-directional servo turret, and wider box guide ways assures vibration-free cutting. VTL finds its wide application for machining of bigger diameter heavy components like valve body, motor body, break drum, disc brake, etc.

BFW Vertical Turning machines have been trademarked as Sudarshan series. With high speed, greater flexibility and rigidity BFW Sudarshan series proved as a true revolving profits partner in the shopfloor.

12 station Hydraulic Turret
Machine lamp, 3-tier lamp & manual pulse generator on machine control panel
Safety door interlock
AC unit for electrical cabinet
Hydraulic power pack with float level switch
Heavy-duty LM guides for X & Z-axis

High Rigid Structure, Base, and sub-assembly parts
Extensive series range
Rapid traverse rates of 24 m/min reduce cycle times. Linear motion guide-ways on the X & Z axes ensure better positioning and repeatability.
Heavy duty spindle, high speed bi-directional hydraulic turret assures vibration-free cutting
Wide access to the chuck zone facilitates ease of loading and unloading of parts.

Chip conveyor ( slat for steel or scraper for cast Iron)
Extended split type boring bar holder is an available option for 550 H machine
Fixture tooling and prove out of the component
Hydraulic power pack with dual pressure circuit for hydraulic chuck(Spindle stationary operation)
Machine color as per customer requirement
Inch or metric serration chuck as per customer requirement
Auto door, Extra set of jaws, boring sleeves, and empty sleeves

Specifications

Specifications	Unit	550 H
Max Swing diameter	mm	650
Max Turning diameter	mm	550 (100)
Std turning diameter	mm	450
Max turning length	mm	500
Spindle motor power	kW	18.5/ 22
X axis stroke	mm	320
Z axis stroke	mm	530
Machine dimensions(wxDxH)	mm	2195 x 3550 x 3000
Machine weight	kg	6500
