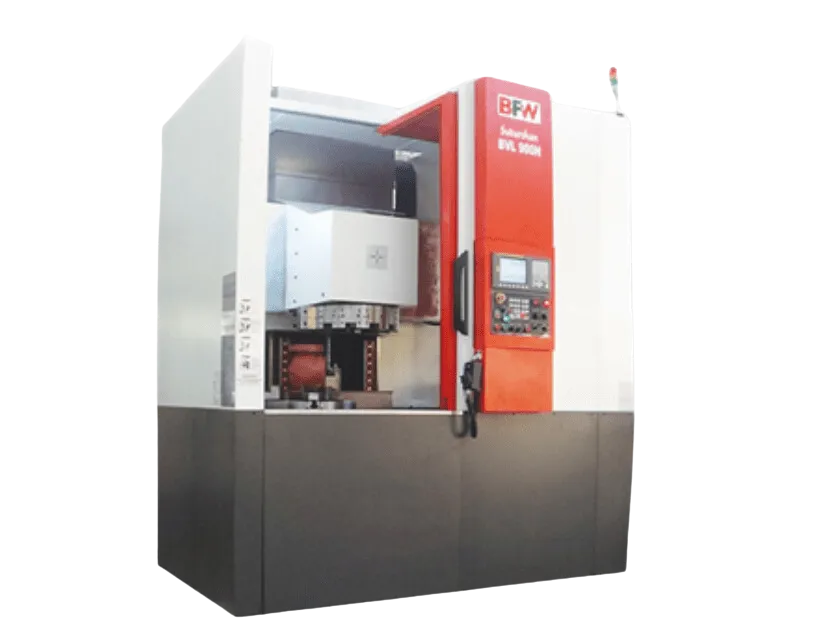

BVL 900H

BVL 500 H | BVL 550 H | BVL 700 H | BVL 800 H | BVL 900 H | BVL 1250 H

To meet the requirement of heavy engineering industries such as Oil & Gas, Earth Moving, and Automobile, VTL H series machines delivers its best graded cast iron bed and column assures thermal stability and better machine life accuracy along with great rigidity, stability, and performance. Box type construction, heavy-duty spindle, high speed bi-directional servo turret, and wider box guide ways assures vibration-free cutting. VTL finds its wide application for machining of bigger diameter heavy components like valve body, motor body, break drum, disc brake, etc.

12 station Hydraulic Turret
Machine lamp, 3-tier lamp & manual pulse generator on machine control panel
Safety door interlock
AC unit for electrical cabinet
Hydraulic power pack with float level switch
Heavy-duty LM guides for X & Z-axis

High Rigid Structure, Base, and sub-assembly parts
Extensive series range
Rapid traverse rates of 20 m/min reduce cycle times. Linear motion guide-ways on the X & Z axes ensure better positioning and repeatability.
Heavy duty spindle, high speed bi-directional hydraulic turret assures vibration-free cutting
Wide access to the chuck zone facilitates ease of loading and unloading of parts.

Chip conveyor ( slat for steel or scraper for cast Iron)
Two speed gear-box is an optional feature available for 900 H machines
Fixture tooling and prove-out of the component
High power spindle 22/30 kW ( Not applicable with 2-speed gearbox)
High column (220 mm for higher daylight area in lieu of STD column)
Machine color as per customer requirement
Inch or metric serration chuck as per customer requirement
Auto door, Extra set of jaws, boring sleeves, and empty sleeves
Fanuc 30/37 kW spindle motor with two-speed gearbox for higher power and torque in lieu of STD spindle drive
Dual type chip conveyor

Specifications

Specifications	Unit	900 H
Max Swing diameter	mm	1100
Max Turning diameter	mm	900 (150)
Std turning diameter	mm	800
Max turning length	mm	800
Spindle motor power	kW	18.5/ 22
X axis stroke	mm	505
Z axis stroke	mm	850
Machine dimensions(wxDxH)	mm	2630 x 4770 x 3605
Machine weight	kg	11000
