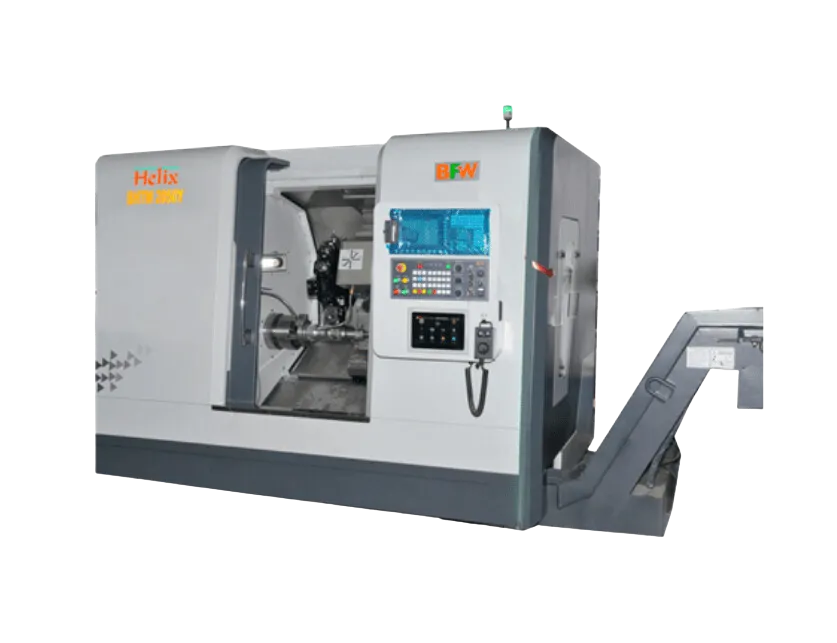

MULTI-PROCESS: Helix 2050 Y Axis

Wide range of multi-process machining applications to meet the requirement of heavy engineering industries for High-end solutions such as Earth Moving, Automobile, Valves Etc.

Multi-tasking machine, “Done-in-One” to reduce lead time & achieve component accuracy. This Y axis ensures capability to deburr parts.

Ball type linear motion guide-ways for all axes
Precise ball screws for all axis
Automatic centralized lubrication system
AC servo drives for all axis
Heavy-duty LM guides for X & Z axis
Hydraulic power pack for machine functions
12 station servo turret
Belt-driven spindle
Absolute encoders for all axis
10.4 color display Fanuc Oi TF/ Siemens
8.4 color display Mitsubishi
Rigid taping
Linear circular interpolation
Operator door and safety lock
Tri-color lamp
Machine alarm diagnostics
Energy saving functions
3-jaw self centering chuck
Hollow rotary cylinder
Tail-stock with programable quill
22/ 30 kW spindle motor
AC for electrical cabinet
Mechanical tool kit
Machine lamp
Tool display
Leveling pads

45 deg slant bed cum saddle
Single piece structure
Better chip removal
Hydraulic Turret

Chip conveyor
2 & 4 jaw self centering chuck
Pneumatic Auto door
Bar feeder system
Tool touch pro
Part catcher
Steady rest
Dual type chip conveyor
Solid cylinder
Work probe
Robotics automation
Gantry automation
Tooled-up solutions
Industry-4.0 integrated system – IRIS

Specifications

Specifications	Unit	Helix Y
Chuck size	mm	425
Max Turning Dia on Chuck	mm	340
Max truning dia between center (Over Carriage)	mm	525
Axes Strokes X/ Y/Z	mm	200/ +/-60/ 600
Spindle Power	kW	11/ 16.5
