Helix

Helix Series: 2050 | 2070 | 2550 | 2570

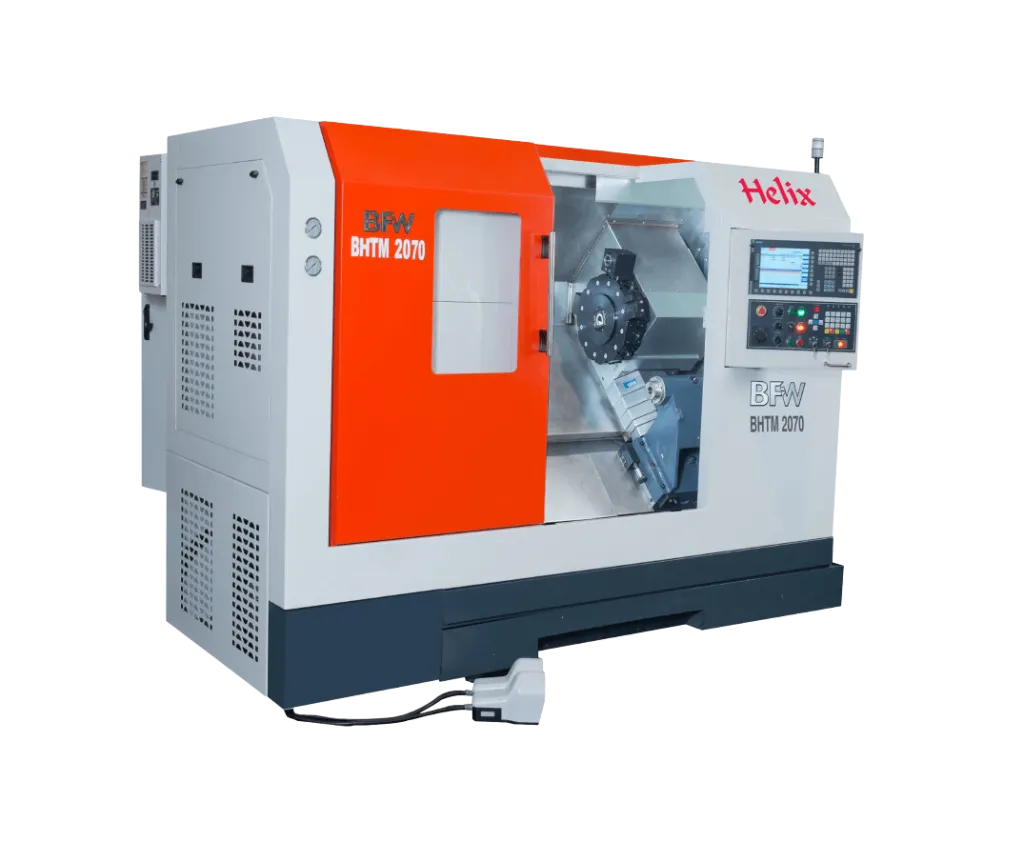

Helix Series machines are made with single-piece inclined bed cum saddle. They are built with heavy-duty LM guideways for rigidity and precise ball screws for higher accuracy.
The Servo turret of BMT 65 is provided as standard and it is the newest technology for turning mill center for more rigid solutions.
Spindle, turret, and tail stock axis are parallel to each other. It enables higher depth of cut.

Brand Story

Combining turning & milling technologies BFW developed a turn-mill version of the Helix series. Single setup, done-in-one to reduce lead time, achieves component accuracy & maximum efficiency. Ideally suited for a Wide array Of multi-process machining applications.

Helix Turn-mill, options to provide customer flexibility for fixture design to meet demands of cylindrical parts and simple interfacing that allows a wide range of machining applications. Best choice for completely processed prismatic work pieces.
Machines have been built with optimized structural rigidity and stiffness for ultimate performance and consistent results.
Adding Y axis with a Helix turn-mill for off-center operations like drilling, milling, tapping & eccentric boring, etc. Y moment is generated by interpolating to linear axis to increase the linear motion capability & achieve production advantage for your competitive manufacturing.

Standard Features
Unique Features
Optional Features

• LM guide-ways for all axis – Class H
• High Precision ball screws- Class C3
• Belt-driven spindle
• AC servo drives for spindle & axis
• Linear & circular interpolation
• Laser calibration & Ball bar tested
• Rigid taping
• 12-station hydraulic turret
• Tool display
• Rigid tap retraction push button
• 3 jaw self-centering chuck
• Solid rotary cylinder
• Tail-stock with a programable quill
• Coolant tank with chip tray
• Machine lamp
• Operations indication lamp-3 color
• AC unit for electrical cabinet
• Centralised lubrication system
• Maintenance tool kit

• Monoblock construction of bed cum saddle with an inclined angle of 45 deg for Helix and (30 + 45) deg for Helix with Y – axis
• Highest bar capacity 65 | 75 | 90
• BMT 65- Base mount type servo turret of 12 stations
• All 12 stations can be used for live tool applications
• Swivel operator panel for operator easiness
• Lesser loading height from the floor and lesser distance from the door for clamping heavy components
• Basic TPM features

• 2 & 4 jaw self-centering chuck
• Collet chuck
• Hollow cylinder
• Pneumatic operated Auto door
• Chip conveyor with chip bin
• Door safety limit switch
• Bar feeder
• Part catcher
• Steady rest
• Tool probe
• Work probe
• Automation solutions
• Tooled-up solutions

Watch Helix Live In Action!

Specifications

Specifications	Unit	HELIX 2050	HELIX 2070	HELIX 2550	HELIX 2570
Capacity:
Swing over bed	mm	550	550	550	550
Swing over carriage	mm	330	330	330	330
Admit between center distance	mm	625	825	625	825
Standard turning diameter (full length)	mm	330	330	330	330
Maximum turning Diameter (Disc-80mm length)	mm	360	360	360	360
Interference-free turning dia(Tool collision dia with adjacent tool pocket)	mm	224	224	224	224
Max turning length between Tail-stock & Head-stock centre	mm	525	725	525	725
Max turning length from chuck hard jaw face to tailstock centre	mm	435	635	425	625
Work holding & tool holding:
Standard chuck size	mm	250	250	250(304)*	250(304)*
Bar capacity	mm	65	65	75	75
Turret indexing mechanism	type	Servo	Servo	Servo	Servo
Turret type	type	BMT 65	BMT 65	BMT 65	BMT 65
Turret center height	mm	100	100	100	100
Turning Tool Shank size (B x W)	mm	25 * 25	25 * 25	25 * 25	25 * 25
No of tools	No.s	12	12	12	12
Boring tool holder dia	mm	40	40	40	40
Spindle:
Spindle nose	type	A2-6	A2-6	A2-8	A2-8
Spindle bore	mm	76	76	86	86
Number of bearing front/ rear	No.s	3/ 2	3/ 2	3/ 2	3/ 2
Spindle bearing front/ rear	mm	110/ 100	110/ 100	120/ 100	120/ 100
Spindle speed	rpm	3200	3200	3000(2200)*	3000(2200)*
Live tool speed	rpm	4000	4000	4000	4000
No of live tool stations	No.s	12	12	12	12
Live tool spindle power	kW	4.5 (Fanuc) \| 5.6 (Siemens)	4.5 (Fanuc) \| 5.6 (Siemens)	4.5 (Fanuc) \| 5.6 (Siemens)	4.5 (Fanuc) \| 5.6 (Siemens)
Control system-Fanuc/ Siemens
Spindle motor power continues/ intermittent rating	kW	Fanuc - 11/ 15 \| Siemens 11/ 16.5	Fanuc - 11/ 15 \| Siemens 11/ 16.5	Fanuc - 11/ 15 \| Siemens 11/ 16.5	Fanuc - 11/ 15 \| Siemens 11/ 16.5
Full power range	rpm	Fanuc - 1000 - 1750 \| Siemens 750 - 2400	Fanuc - 1000 - 1750 \| Siemens 750 - 2400	Fanuc - 1000 - 1750 \| Siemens 750 - 2400	Fanuc - 1000 - 1750 \| Siemens 750 - 2400
Traverse
Cross slide movement (X axis)	mm	200 (+150/ -50)	200 (+150/ -50)	200 (+150/ -50)	200 (+150/ -50)
Longitudinal movement (Z axis)	mm	600	800	600	800
Rapid traverse (X axis)	m/min	20	20	20	20
Rapid traverse (Z axis)	m/min	20	20	20	20
Cutting feed rate	m/min	0 - 10	0 - 10	0 - 10	0 - 10
Tailstock
Quill diameter	mm	80	80	80	80
Quill traverse	mm	100	100	100	100
Base traverse	mm	400	600	400	600
Quill taper	type	MT - 4	MT - 4	MT - 4	MT - 4
Quill thrust force-Max at 15 bar	kgf	300	300	300	300
Fluid system
Coolant tank capacity	ltr	160	180	160	180
Coolant pump capacity	lpm	160	180	160	180
Coolant pump capacity	lpm	200	200	200	200
Lubrication tank capacity (servo 68)	ltr	2.7	2.7	2.7	2.7
Hydraulic tank capacity (Servo 68)	ltr	40	40	40	40
Hydraulic pump capacity	lmp	20	20	20	20
Hydraulic system pressure	bar	35	35	35	35
Accuracy as per ISO 230 - 2
Positioning X/Z	mm	0.01	0.01	0.01	0.01
Positioning - C axis	arc sec	+/-36	+/-36	+/-36	+/-36
Repeatability - X/Z	mm	0.007	0.007	0.007	0.007
Machine installations:
Machine dimension W x D X H	mm	3300 * 1700 * 1950	3550 * 1700 * 1950	3300 * 1700 * 1950	3550 * 1700 * 1950
Total connected load	kVA	30	30	30	30
Machine Weight	kg	4300	4700	4400	4800
