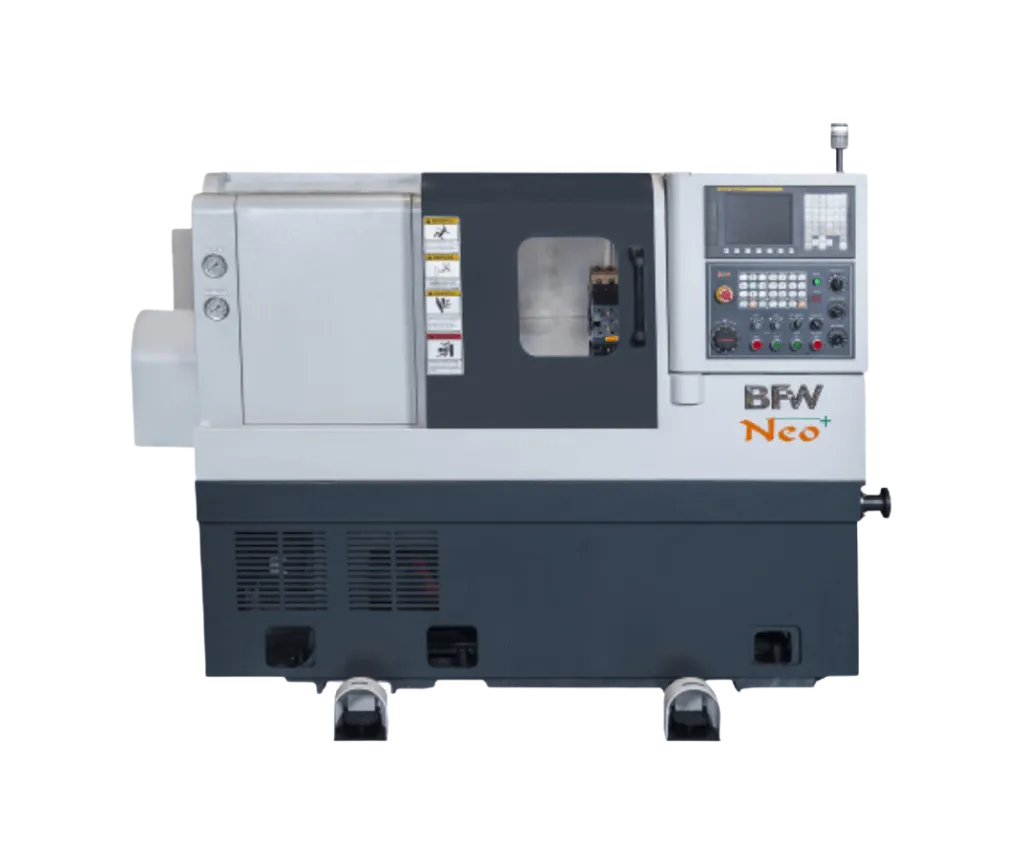

BFW’s HTL series of Neo turning centers are designed with unrivaled rigidity, high productivity, and reliability to enhance unmatched flexibility for a wide variety of part configurations.
Developed to meet the requirements of job shops as well as mass production.
Brand Story
BFW HTL platform NEO series has been developed to achieve precision with productivity for medium-duty turned components. The right turning platform for mass production jobs in Automotive, Aerospace & General Engineering. The NEO horizontal 2-axis turning centers are available in A2-6 spindle configurations with a 300mm maximum turning diameter. These sets of machines have the versatility for most turning applications.
- Ball type LM guide-ways(Class H)
- Precise ball screws (Class 3)
- Automatic centralized lubrication system
- AC servo drives
- Coolant tank cum chip tray
- Hydraulic power pack
- Belt-driven spindle
- Absolute encoders
- 10.4 color display Fanuc Oi TF/ Siemens
- 8.4 color display Mitsubishi
- Rigid taping
- Linear circular interpolation
- 8 – station hydraulic turret
- Operator door
- Tri-color lamp
- Machine alarm diagnostics
- Energy-saving functions
- 3-jaw self-centering chuck
- Solid rotary cylinder
- Tail-stock with programable quill
- AC for electrical cabinet
- Mechanical tool kit
- Machine lamp
- Tool display
- Leveling pads
- Precision LM guides for X & Z axis
- High precision ball screws for X & Z axis
- Enabled for Automation
- Ergonomically designed operator panel
- The platform is first-of-its-kind in India with a distinctive feature offering total isolation of tramp oil from coolant. To ensure better accuracy & lesser running cost.
- Chip conveyor
- 12 station hydraulic turret
- 2 & 4 jaw self-centering chuck
- Collet chuck
- Auto door
- Bar feeder system
- Part Catcher
- Tool touch probe
- Work probe
- Hollow cylinder
- Gantry / Robotics Automation
- Tooled-up solutions
- Industry-4.0 integrated system – IRIS
WATCH NEO+ LIVE IN ACTION
Specifications
| Specifications | Unit | NEO + | NEO 2050 |
| Capacity: | |||
| Swing over bed | mm | 500 | 500 |
| Swing over carriage | mm | 270 | 300 |
| Admit between center distance | mm | 425 | 550 |
| Standard turning diameter (full length) | mm | 270 | 300 |
| Maximum turning Diameter (Disc-80mm length) | mm | 300 | 330 |
| Interference-free turning dia(Tool collision dia with adjacent tool pocket) | mm | 228 | 228 |
| Max turning length between Tail-stock & Head-stock centre | mm | 400 | 520 |
| Max turning length from chuck hard jaw face to tailstock centre | mm | 320 | 465 |
| Work holding & tool holding: | |||
| Standard chuck size | mm | 200 | 200 |
| Bar capacity | mm | 51 | 51 |
| Turret indexing mechanism | type | Hydraulic | Hydraulic |
| Turret Center height | mm | 80 | 80 |
| Turning Tool Shank size (B x W) | mm | 25 * 25 | 25 * 25 |
| No of tools | Nos | 8 | 8 |
| Boring tool holder Size (Dia) | mm | 40 | 40 |
| Spindle: | |||
| Spindle nose | type | A2-6 | A2-6 |
| Spindle bore | mm | 63 | 63 |
| Number of bearing front/ rear | No's | 3/ 2 | 3/ 2 |
| Spindle bearing front/ rear | mm | 100/ 90 | 100/ 90 |
| Spindle speed | rpm | 3500 | 3500 |
| CNC System Fanuc/ Siemens Mitsubishi | |||
| Spindie motor power continues/ intermittent rating | Kw | Fanuc - 7.5/ 11 | Mitsubishi 7.5 / 11 | Siemens 9/ 13.5 | Fanuc - 7.5/ 11 | Mitsubishi 7.5 / 11 | Siemens 9/ 13.5 |
| Full power range | rpm | Fanuc - 1167 - 2335 | Mitsubishi 1167 - 2625 | Siemens 875 - 2625 | Fanuc - 1167 - 2335 | Mitsubishi 1167 - 2625 | Siemens 875 - 2625 |
| Traverse | |||
| Cross slide movement (X axis) | mm | 165 (+150/ -15) | 185 (+170/ -15) |
| Longitudinal movement (Z axis) | mm | 400 | 525 |
| Rapid traverse (X axis) | m/min | 30 | 30 |
| Rapid traverse (Z axis) | m/min | 30 | 30 |
| Cutting feed rate | m/min | 0 - 10 | 0 - 10 |
| Tailstock | |||
| Quill diameter | mm | 80 | 80 |
| Quill traverse | mm | 100 | 100 |
| Base traverse | mm | 240 | 400 |
| Quill taper | type | MT - 4 | MT - 4 |
| Quill thrust force-Max at 15 bar | kgf | 300 | 300 |
| Fluid system | |||
| Coolant tank capacity | ltr | 100 | 100 |
| Coolant pump capacity | lpm | 160 | 160 |
| Lubrication tank capacity | ltr | 2.7 | 2.7 |
| Hydraulic tank capacity | ltr | 32 | 32 |
| Hydraulic pump capacity | lmp | 16 | 16 |
| Hydraulic system pressure | bar | 35 | 35 |
| Accuracy as per ISO 230 - 2 | |||
| Positioning X/Z | mm | 0.007 | 0.007 |
| Repeatability - X/Z | mm | 0.005 | 0.005 |
| Machine installations: | |||
| Machine dimension W x D X H | mm | 2050 * 1400 * 1600 | 2050 * 1400 * 1600 |
| Total connected load | kVA | 18 | 18 |
| Machine Weight | kgs | ~2900 | ~ 3200 |
