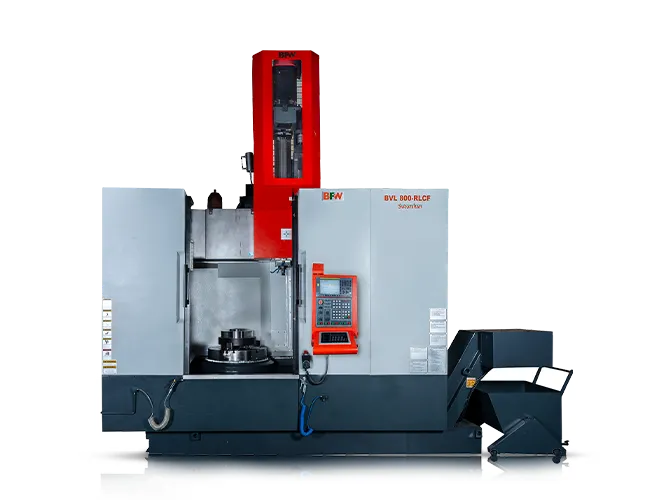

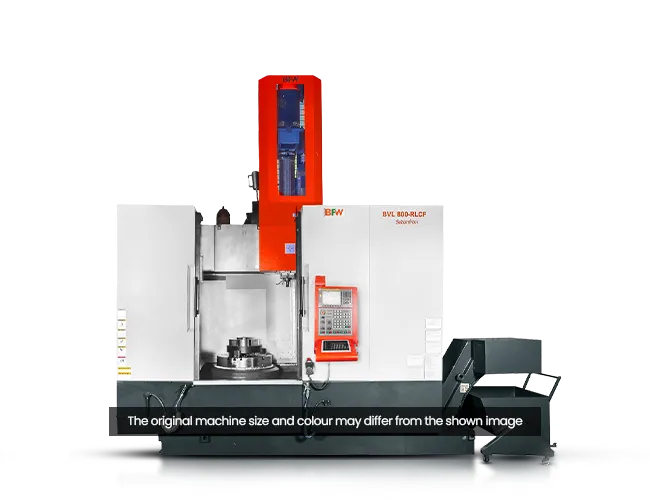

BVL R L CF
BVL RLCF series are designed to handle large, heavy workpieces, and provide manufacturers with a reliable high-performance solution for heavy-duty applications. Basic Turning, Boring, Deep Boring, etc. Turn-mill applications viz. Drilling, Tapping, Milling, Helical Interpolation, Thread Milling and Profile Machining Etc.
Brand Story
BFW Vertical Turning machines have been trademarked as Sudarshan series. With high speed, greater flexibility & rigidity BFW Sudarshan series proved as a true revolving profits partner in the shopfloor.
- Geared table spindle, supported by taper roller bearing & thrust ball bearing with re-circulating oil lubrication system
- Machine lamp, 3-tier lamp & manual pulse generator on machine control panel
- Hydraulic counterbalance for RAM
- Mounting pads with levelling screws
- ATC with 12 tool – Umbrella type
- High Rigid Column Structure
- Continuous feed for Table (Cf Axis) by Dual Motor technology with Electronic Pre-load to ensure high accuracy interpolation
- Larger Size Cross Roller Bearing for Table Drive for High Axial, Radial and Tilting Load
- Heavy Duty Right Angle Head for Radial drilling, Keyway milling operations Etc.
- Hinged Steel Belt Conveyor for Steel Chips
- Live spindle on RAM-11/15 kW AC spindle motor with speed range – 50 to 2400 (220 Nm)
- C-axis for accurate indexing to carry out drilling & tapping functions with high resolution hollow shaft encoder & hydraulic table
- clamping during cutting
- CF axis for continuous interpolation of C-axis (rotation of table) & two linear axes ( X & Z axis) by random control of two spindle motors
- Slat-type chip conveyor (for cast iron and aluminum chips) with chip trolley in-lieu of the chip tray
- Coolant thru spindle (pump cap-25 lpm & 16 bar pressure) hydro cyclone
Watch BVL R L CF Live In Action!
Specifications
| Specifications | 800 RL CF |
| Max swing diameter | 1050 |
| Max turning diameter | 900 |
| Max turning length | 800 |
| Table diameter | 825 face plate |
| Work spinlde motor power | (15/ 18.5) x 2 |
| Work spindle speed range | 10-450 |
| Tool spindle taper | BT 50 |
| Live tool spindle power | 11/15 |
| Live spindle speed range | 50-2400 |
| X axis stroke | 885 |
| Z axis stroke | 825 |
| RAM cross section | 220 x 220 |
Applications
BVL R L CF
